In the field of sample pretreatment, solid phase extraction (SPE) technology is the cornerstone of ensuring accurate analytical results, widely used in environmental monitoring, food safety, pharmaceutical research, chemical analysis and other industries. While most professionals focus on the performance of SPE column adsorbents, there is an overlooked core component that directly determines extraction efficiency, reproducibility and data reliability — the SPE column sieve plate. As a key part of the SPE column structure, it undertakes the dual mission of fixing adsorbents and filtering solutions, and its quality is closely related to the success or failure of the entire experimental process.
What Is an SPE Column Sieve Plate & Why Is It Indispensable?

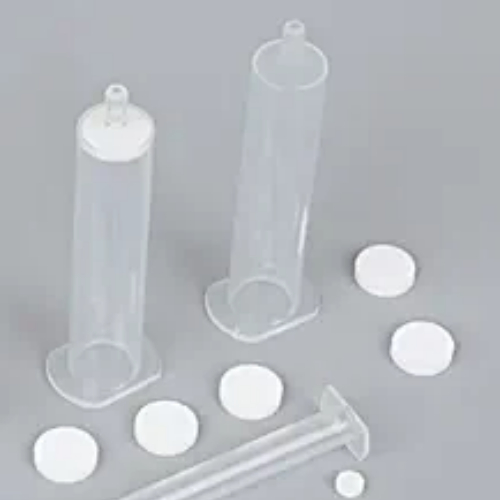

The SPE column sieve plate is a porous barrier installed at the top and bottom of the SPE column tube, located between the column tube and the adsorbent filler. It may seem like a simple small component, but it plays an irreplaceable role in the SPE process:
Fix Adsorbents Firmly: It effectively fixes the adsorbent filler in the column tube, preventing the filler from being washed away by the sample solution or eluent, avoiding the occurrence of "channeling" and filler settlement, which ensures the stability of the extraction system.
Control Flow Rate Precisely: The uniform pore size of the sieve plate controls the flow rate of the solution passing through the adsorbent layer stably. Too fast a flow rate will lead to insufficient contact between the sample and the adsorbent, reducing extraction efficiency; too slow will prolong the experimental time and affect work efficiency.
Filter Impurities & Protect Adsorbents: It can filter out large-particle impurities in the sample, preventing them from clogging the adsorbent pores, ensuring the adsorption performance of the adsorbent is not affected, and extending the service life of the SPE column.
Ensure Reproducibility: High-quality sieve plates have consistent pore size and thickness, which ensures that the flow rate and extraction conditions of each SPE column are consistent in batch experiments, laying the foundation for accurate and repeatable experimental data — a key requirement for analytical testing.
Key Factors for Choosing High-Quality SPE Column Sieve Plates
Not all SPE column sieve plates are the same. The quality of sieve plates varies greatly due to differences in materials, processing technology and quality control, which directly affects the experimental effect. When selecting sieve plates, the following core factors should be focused on:
1. Material Selection: Adapt to Different Experimental Scenarios
The material of the sieve plate determines its chemical stability, corrosion resistance and compatibility with samples, which is the primary factor for selection. Common materials include:
Polypropylene (PP): The most widely used material, with excellent chemical stability, corrosion resistance to most organic solvents and acid-base solutions, low cost and good processing performance. It is suitable for most general SPE experiments, such as routine environmental and food sample pretreatment.
Ultra-High Molecular Weight Polyethylene (UHMW-PE): With higher strength, wear resistance and structural stability, it can maintain its shape without deformation even under high-speed fluid impact. It is suitable for experiments with high flow rate requirements or large-volume sample processing, and has better solvent compatibility.
Glass: It has high purity and excellent chemical inertness, does not release any impurities, and avoids sample contamination. It also has good thermal and mechanical stability, suitable for special analysis scenarios with high requirements for sample purity, such as trace element detection.
Polytetrafluoroethylene (PTFE) & Stainless Steel: PTFE has extremely low surface energy and excellent chemical stability, suitable for scenarios that need to avoid sample adsorption; stainless steel has high strength and corrosion resistance, suitable for high-pressure or strong-corrosion experimental environments.
It should be noted that only about 10% of specially selected UHMW-PE raw materials can be used to produce high-quality SPE sieve plates, which requires strict raw material screening to ensure the sieve plates have a water absorption rate of less than 0.01% and uniform particle size.
2. Pore Size & Thickness: Match Adsorbent Particle Size
The pore size of the sieve plate must be smaller than the particle size of the adsorbent filler to prevent the filler from passing through, while ensuring that the solution can flow smoothly. Generally, the pore size of the sieve plate is 20-40 μm, which is suitable for most SPE adsorbents (50-100 μm). For adsorbents with smaller particle sizes, sieve plates with smaller pore sizes need to be selected.
The thickness of the sieve plate also affects the flow rate and stability. Too thick will increase the resistance of the solution, slow down the flow rate; too thin will reduce the mechanical strength and easily break or deform under pressure. The standard thickness of high-quality sieve plates is 1.2-2.5 mm, which can balance flow rate and stability. For example, the ultra-thin sieve plate with a thickness of only 1.2 mm can be used to separate different filler layers in multi-layer SPE columns.
3. Processing Precision: Ensure Batch Consistency
The processing precision of the sieve plate, especially the diameter accuracy, directly affects its fit with the SPE column tube. Using precision molds for processing can ensure that the diameter of the sieve plate matches the inner diameter of the column tube. A small deviation will lead to a significant decrease in porosity — for example, for a 9.0 mm diameter sieve plate with 40% porosity, if the diameter is squeezed and reduced by 0.2 mm, the porosity will drop to 37.24%.
In addition, each batch of sieve plates needs to undergo strict flow rate testing to ensure that the flow rate of each sieve plate is consistent, avoiding differences in experimental results caused by uneven flow rate in batch experiments.
4. Chemical Compatibility: Avoid Sample Contamination
The sieve plate must have good compatibility with the sample, solvent and eluent used in the experiment, and must not react with them or release impurities, otherwise it will contaminate the sample and affect the accuracy of the analysis results. For example, PTFE sieve plates can be matched with glass column tubes for plasticizer detection to avoid contamination from other materials.
Common Problems of Low-Quality Sieve Plates & How to Avoid Them
Many experimental failures are not caused by the adsorbent or experimental operation, but by the use of low-quality sieve plates. Common problems and solutions are as follows:
Flow Rate Instability: Due to uneven pore size or poor fit with the column tube, the flow rate is too fast or too slow, leading to inconsistent extraction efficiency. Solution: Choose sieve plates with uniform pore size and precise processing, and match the appropriate sieve plate size according to the SPE column specification.
Sieve Plate Deformation & Breakage: Due to insufficient thickness or poor material strength, the sieve plate is deformed or broken under pressure, resulting in filler leakage. Solution: Select sieve plates made of high-quality materials (such as UHMW-PE) with standard thickness, and avoid excessive pressure during the experiment.
Sample Contamination: The sieve plate material contains impurities or reacts with the sample, leading to abnormal experimental data. Solution: Choose sieve plates made of high-purity materials, and confirm the chemical compatibility between the sieve plate material and the sample before the experiment.
Pore Blockage: The pore size of the sieve plate is too small or the material has poor impurity filtering capacity, leading to blockage during the experiment. Solution: Select sieve plates with appropriate pore size according to the sample impurity content, and pre-filter the sample if necessary.
Our SPE Column Sieve Plates: Your Reliable Partner for Accurate Experiments
We have focused on the R&D and production of SPE column accessories for many years, and deeply understand the core needs of laboratory professionals for sieve plate quality. Our SPE column sieve plates have the following advantages, helping you avoid experimental troubles and improve work efficiency:
Strict Raw Material Selection: We only select high-quality raw materials such as UHMW-PE, PP, glass and PTFE that meet industrial standards, and conduct strict screening to ensure that the raw materials have excellent chemical stability and purity, and no impurities are released.
Precise Processing Technology: Adopt advanced precision mold processing technology to ensure that the diameter, thickness and pore size of each sieve plate are consistent, the fit with the SPE column tube is tight, and the batch flow rate stability is excellent. Each sieve plate undergoes strict quality inspection before leaving the factory.
Comprehensive Specification Coverage: We provide sieve plates of various specifications to match 1 mL, 3 mL, 6 mL, 12 mL, 20 mL, 30 mL, 60 mL and other standard SPE column tubes, as well as sieve plates suitable for 96-well extraction plates, meeting the needs of different experimental scenarios.
Customized Services: According to your special experimental needs (such as special material, pore size, thickness), we can provide customized sieve plate solutions to solve your personalized experimental problems.
High Cost-Effectiveness: While ensuring high quality, we optimize the production process to reduce costs, providing you with high-quality sieve plates at competitive prices, helping laboratories reduce procurement costs without sacrificing experimental quality.
Conclusion
The SPE column sieve plate, as a key component of the SPE system, is the "gatekeeper" of accurate sample pretreatment. Its quality directly affects the efficiency, reproducibility and reliability of the experiment. Choosing a high-quality sieve plate can not only avoid experimental failures caused by trivial problems, but also lay a solid foundation for accurate analytical results.
Whether you are engaged in routine laboratory testing, pharmaceutical R&D, environmental monitoring or food safety testing, our SPE column sieve plates can provide you with stable and reliable support. Contact us today to learn more about our sieve plate specifications and customized services, and let us help you improve experimental efficiency and data accuracy together.
