KHO-PP-PF10
KAHO

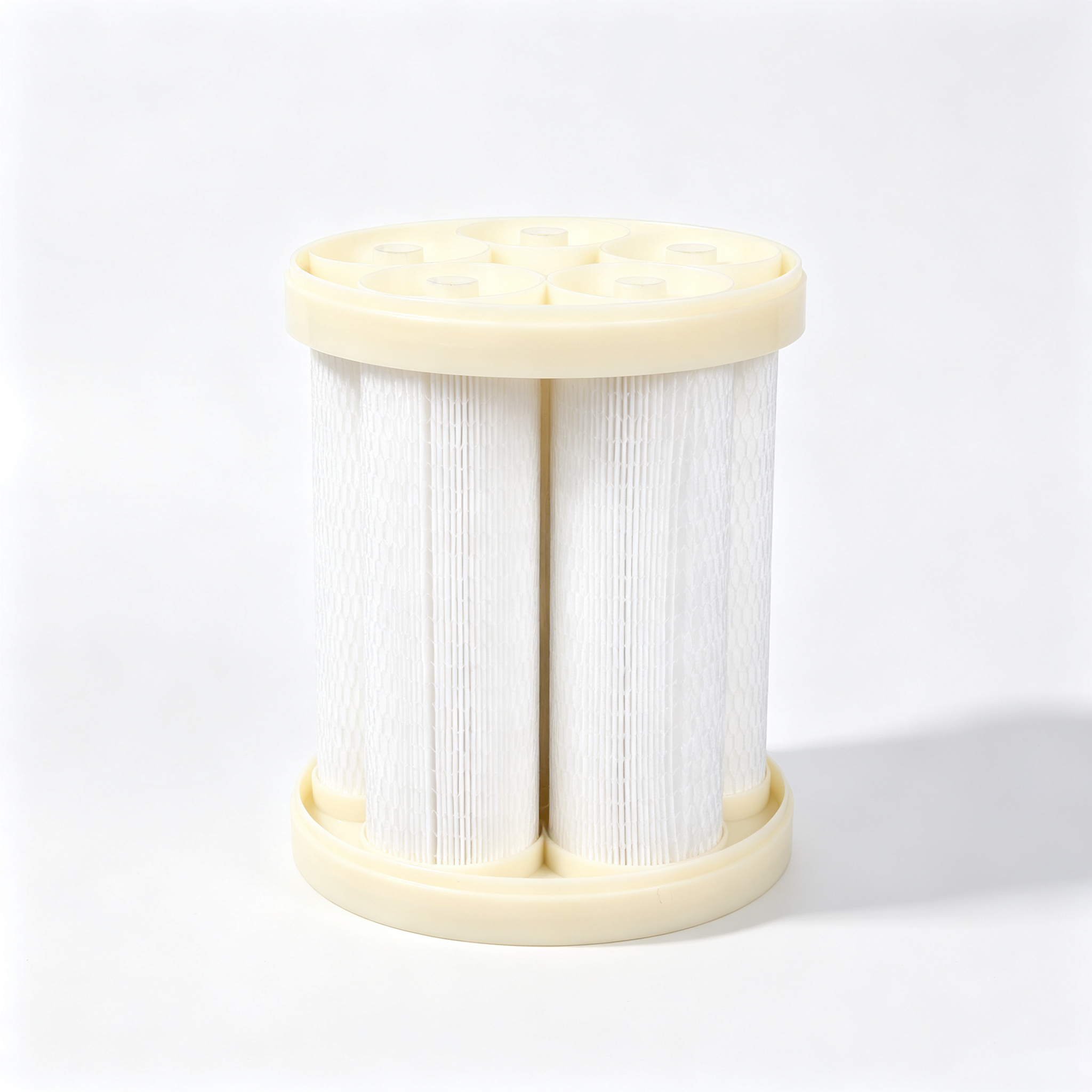

The PP pleated filter cartridge is a high-performance filtration element engineered for swimming pool water circulation and purification systems. Constructed from food-grade polypropylene (PP) ultrafine fiber membrane with precision pleating technology, it forms a three-dimensional filtration structure that acts as a precision sieve for pool water flow.

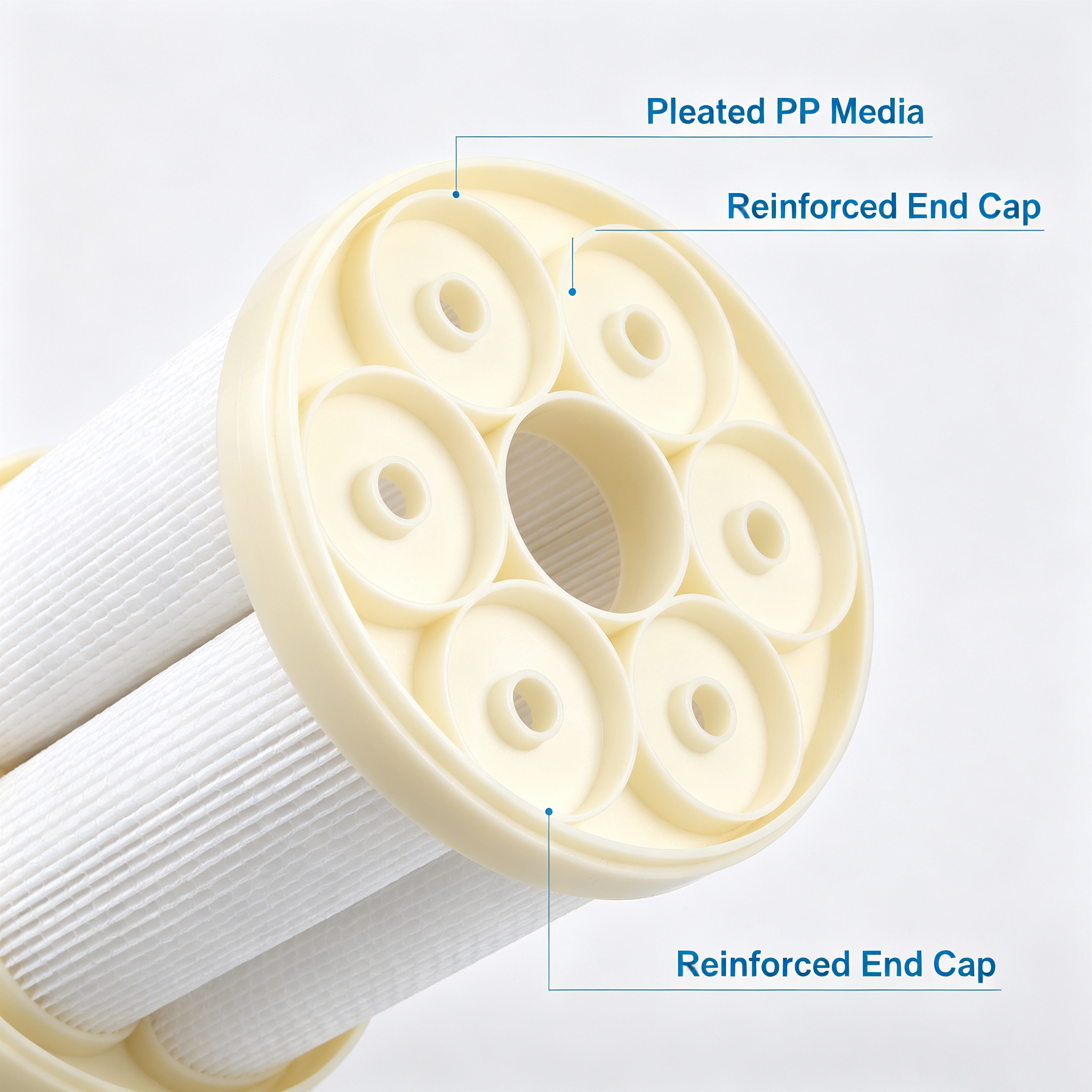

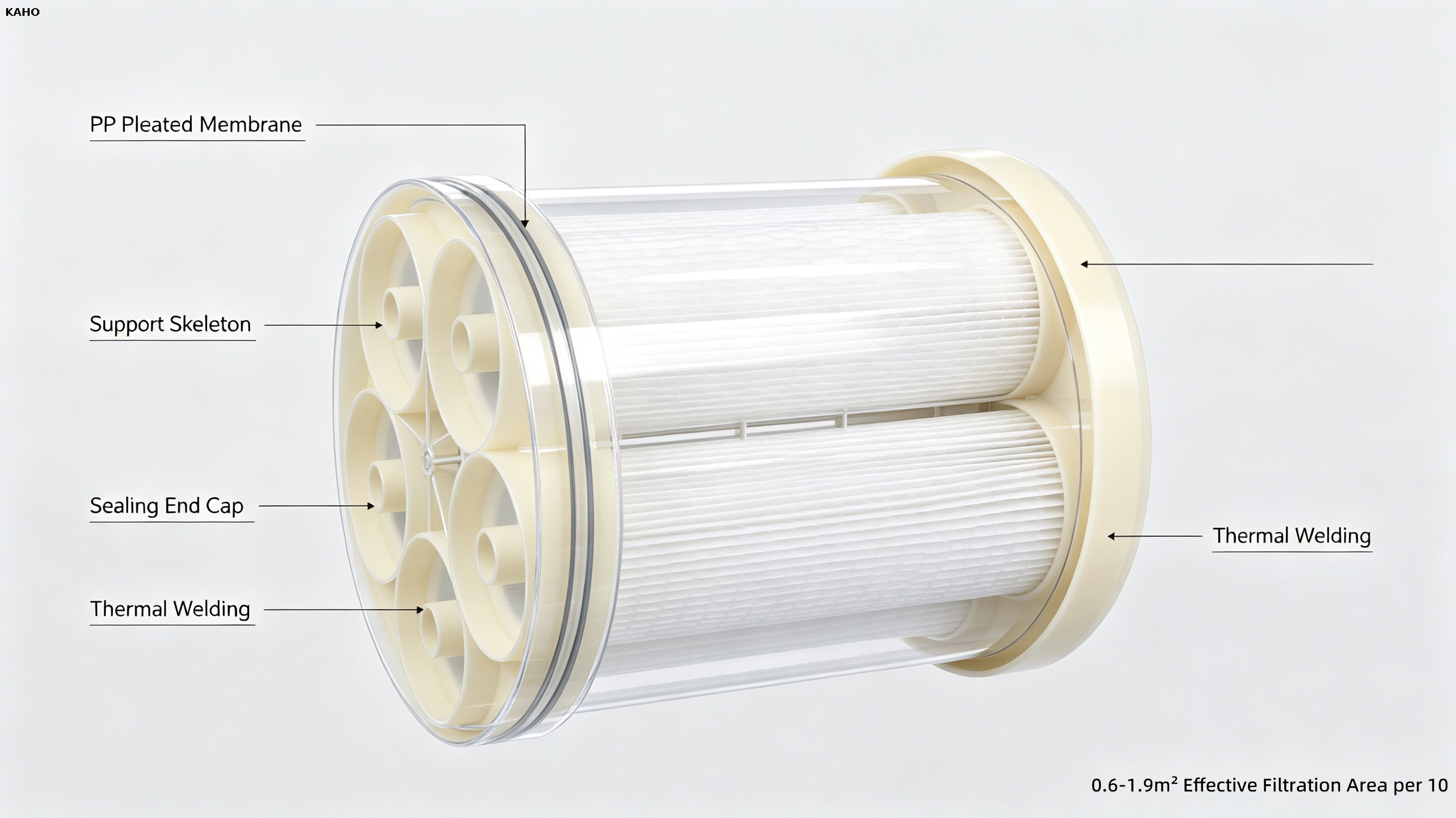

The cartridge consists of filtration membrane layers, a support skeleton and sealing end caps, fully integrated via thermal welding without any adhesive additives, ensuring zero secondary pollution during the filtration process. The unique accordion-style pleated design delivers an effective filtration area of 0.6–1.9 m² per 10-inch cartridge — 3 to 5 times that of conventional melt-blown cartridges of the same specifications — achieving the engineering breakthrough of compact size with large capacity.
Adopting submicron gradient density filtration technology, the pore size transitions from loose to dense from the outer layer to the inner layer, forming a deep layer-by-layer screening mechanism. It effectively intercepts:
Suspended particles, sediment and rust
Colloidal impurities and algae spores
Hair, dander and other human metabolic wastes
Partial bacteria and microbial carriers
Filtration precision covers multiple grades from 1μm to 50μm, with an interception rate of 95% and above, keeping pool water consistently crystal clear.
The pleated structure significantly expands fluid channels. At equivalent filtration precision, the initial pressure differential is as low as 0.05MPa, with operating pressure differential stabilized within 0.15MPa. Compared with traditional cartridges, the flow rate increases by 40%–60%, greatly reducing pump energy consumption.
Benefiting from the massive effective filtration area and deep gradient structure, the dirt-holding capacity of a single cartridge reaches 2–3 times that of ordinary cartridges. Under standard swimming pool operating conditions, the replacement cycle can be extended to 3–6 months, substantially reducing maintenance frequency and labor costs.
100% polypropylene material provides exceptional chemical compatibility:
Acid and alkali resistance: pH 1–13
Temperature resistance: Standard type ≤70°C; high-temperature type up to 80°C
Oxidation resistance: Withstands long-term erosion from common pool disinfectants (chlorine-based, ozone, etc.)
Stable operation for both indoor heated pools and outdoor open-air pools.
Supports backwash cleaning and regeneration, restoring over 80% of filtration performance through reverse water flushing. The all-PP material can be incinerated or recycled, conforming to green environmental concepts. Long-term usage costs are 30%–50% lower than traditional sand filter systems.
| Parameter | Specification |
|---|---|
| Filter Media | Food-grade polypropylene (PP) ultrafine fiber non-woven fabric |
| Support Skeleton | High-strength PP center rod / stainless steel liner (optional) |
| End Cap Material | Polyurethane (PU) thermal seal / PP injection molding |
| Sealing Method | Thermal welding, adhesive-free |
| Filtration Precision | 1μm / 5μm / 10μm / 20μm / 50μm (optional) |

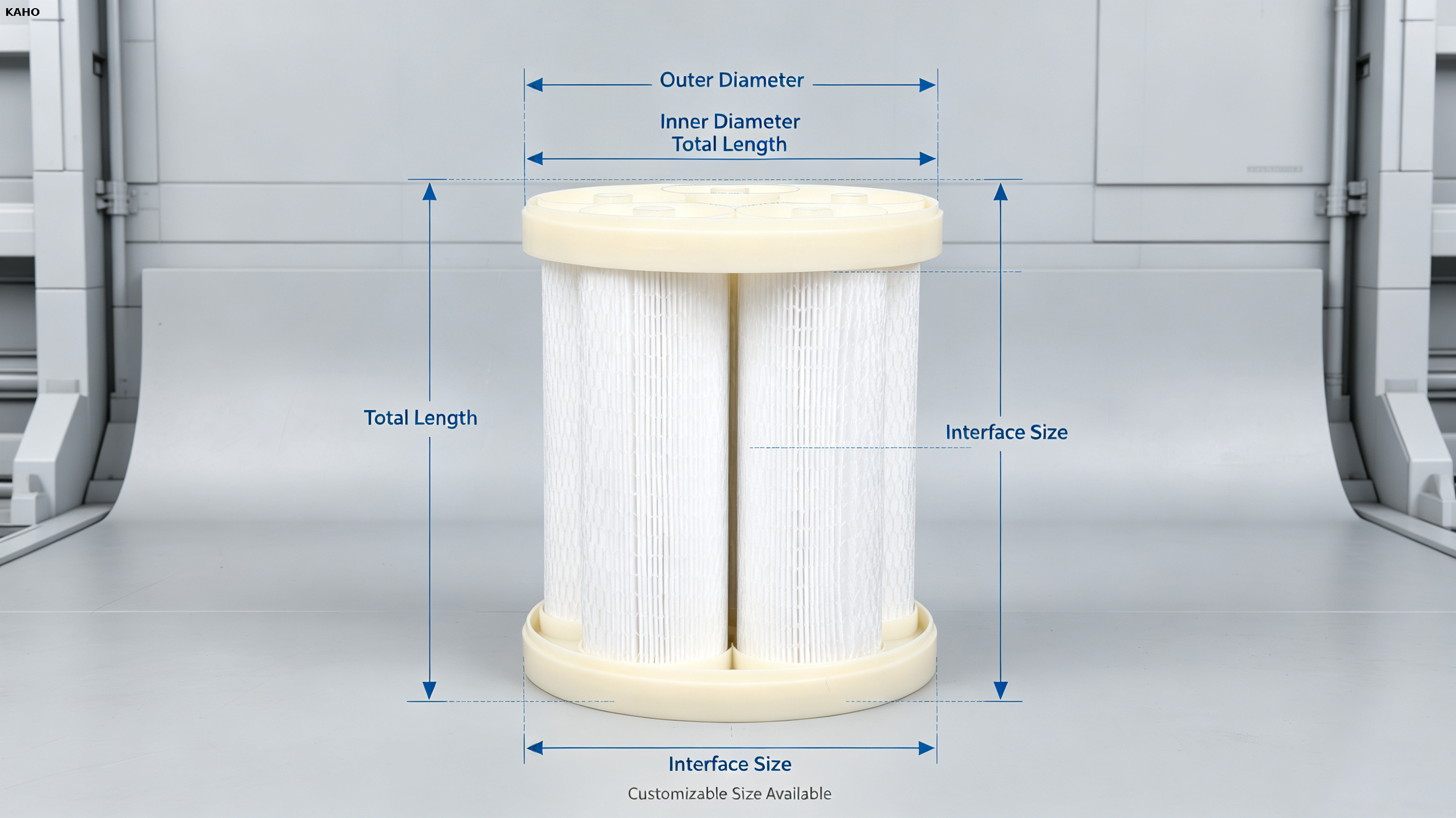

| Outer Diameter | 68mm / 115mm / 152mm (customizable) |
| Inner Diameter | 28mm / 30mm |
| Standard Length | 10" (254mm) / 20" (508mm) / 30" (762mm) / 40" (1016mm) |
| Effective Filtration Area | 0.6–1.9 m² per 10" length |
| Max Operating Pressure | Forward 0.4MPa @ 25°C; Reverse 0.05MPa |
| Recommended Replacement Pressure | 0.15–0.2MPa |
| Connection Type | Flat press-in / 226/222/220 insert type / M30 thread |
Commercial Aquatic Venues: Large sports center pools, fitness club pools, hotel wellness pools, water park wave pools
Private Leisure Pools: Villa private pools, high-end residential community pools, rooftop infinity pools
Special Hydrotherapy Facilities: SPA massage pools, hot spring soaking pools, children's wading pools
Industrial Water Treatment: Seawater aquaculture purification, landscape fountain circulation, industrial cooling water pre-treatment
Single unit: Individually sealed PE bag with shockproof foam sleeve
Bulk: 10 or 20 pieces per corrugated carton with moisture-proof outer film
Custom: Pallet packing and wooden crate reinforcement available upon request
Transportation: Express, dedicated freight lines, sea freight and air freight all supported
Protection standards: Moisture-proof, compression-proof, UV-proof
Storage: Cool, dry place at ≤40°C, avoid contact with sharp objects
Shelf life: 24 months in original unopened packaging
Complete export documentation: Customs declaration, commodity inspection, certificate of origin
Compatible with mainstream international brand specifications (Pentair, Hayward, Jandy, etc.)
Multiple trade terms supported: FOB, CIF, DDP
| Pool Type | Recommended Precision | Recommended Size | Suggested Quantity | Replacement Cycle |
|---|---|---|---|---|
| Residential small pool (<50m³) | 10–20μm | 10" × 68mm | 1–2 pcs | 3–4 months |
| Club medium pool (50–200m³) | 5–10μm | 20" × 115mm | 3–4 pcs | 4–6 months |
| Commercial large pool (200–500m³) | 5–10μm | 30" × 152mm | 4–6 pcs | 3–5 months |
| High-end competition pool (>500m³) | 1–5μm | 40" × 152mm | 6–8 pcs | 2–4 months |
| SPA / massage pool | 1–5μm | 10" × 68mm | 1–2 pcs | 2–3 months |
Note: Final selection should be comprehensively evaluated based on circulation pump flow rate, raw water quality and usage frequency.
"We manage a 200,000-gallon resort pool with heavy daily traffic. Switching to these pleated PP cartridges was a game-changer. Water clarity improved dramatically within 48 hours, and our maintenance team spends 60% less time on filter maintenance." — Michael Johnson, Engineering Director, Five-Star Resort, Miami, USA
"As a FINA-compliant competition facility, we demand exceptional water quality. These cartridges deliver 1-micron filtration that keeps our pool water at 0.2 NTU turbidity year-round, and reduced our backwash water consumption by 80%." — Sarah Williams, Operations Manager, Bond University Aquatic Center, Australia
"These PP pleated filters last 2–3 seasons with proper cleaning, even with Toronto's hard water and heavy chlorine dosing. The 4.8-star rating from my clients speaks for itself." — David Chen, Residential Pool Contractor, Toronto, Canada
Q: Are you a manufacturer?A: Yes. We are a Chinese manufacturer specializing in sintered polymer filters, carbon filters and TMF filters, with more than 15 years of production experience.
Q: Can we use our own logo / brand?A: Absolutely. Private label is welcome. Custom logo printing on filters, packaging and cartons is fully supported.
Q: Can you offer samples to check quality?A: Yes. We provide free samples on a freight-collect basis. Customized samples are also available; a sample tooling fee applies for custom designs.
Q: Why should I choose KAHO?A: We own the complete production chain — tooling workshop, injection workshop, filter workshop and assembly workshop. Every part of your filter is made in-house, so both product quality and cost are fully under our control. Our filters hold international certifications including NSF 42 & 53, WQA and SG. Production runs in an ISO9001-certified factory under a multi-stage QC system.
Test raw water turbidity and TDS values first to select the appropriate filtration precision
Total cartridge flow rate should be ≥ 1.2 times the rated flow rate of the circulation pump
Keep 1–2 spare cartridges in rotation to ensure maintenance without system shutdown
Install a pressure differential gauge; clean or replace promptly when pressure exceeds 0.15MPa
