A water-activated self-sealing filter is a professional sintered vent filter designed for anti-backflow and anti-overflow protection. Unlike ordinary vent filters that only block dust, this functional sintered filter features a unique “dry breathable, water shut-off” performance. It is widely applied in oxygen concentrator humidifier bottles, medical negative pressure waste liquid systems, laboratory waste bottles and industrial fluid equipment, effectively protecting precision devices from liquid backflow damage.
Many medical and precision devices rely on vent filters to balance internal air pressure. However, traditional hydrophobic filters can only repel water and cannot completely block liquid overflow once the equipment is tilted, overturned or fully filled with liquid. Liquid reflux often causes molecular sieve failure, vacuum pump corrosion, equipment short circuit and cross-contamination. The water-activated self-sealing filter perfectly solves these industry pain points with automatic instant shut-off performance.
The self-sealing filter, also known as overflow stop filter or water-triggered shut-off filter, is made of high-density sintered HDPE/PP material compounded with water-swelling polymer. It is an integrated forming filter without adhesive, safe, non-toxic and pollution-free.
It is necessary to distinguish it from other similar products. Hydraulic self-sealing filters rely on mechanical spring structures, which belong to completely different industrial parts. Common hydrophobic filters only provide water-repellent effects and cannot achieve full sealing when submerged in liquid. In contrast, our water-activated self-sealing filter realizes passive automatic sealing without electricity, no mechanical movement and zero delay.
Under normal dry working conditions, the internal micropores of the filter remain unobstructed. Air and gas can pass through freely to complete equipment ventilation and pressure balance, which will not affect the normal operation of the machine.
Once the filter contacts water or aqueous solution, the built-in water-sensitive polymer material absorbs water and expands instantly. The micropore structure is rapidly squeezed and completely closed to block liquid penetration. This automatic shut-off function can effectively prevent liquid backflow, overflow and reverse suction, protecting downstream precision components.
Most medical-grade self-sealing filters adopt irreversible one-time sealing design to ensure absolute safety and avoid secondary pollution. Reusable reversible sealing types can be customized for special industrial scenarios. The conventional withstand water pressure ranges from 50kPa to 100kPa, supporting one-way and two-way sealing customization.
1. Dual functions of ventilation and liquid isolation It maintains smooth gas circulation in dry state and completely blocks liquid overflow when encountering water, realizing intelligent one-way protection.
2. Integrated sintered safety structure One-piece sintered molding without glue bonding, no shedding and no impurity precipitation, meeting medical-grade and RoHS environmental protection standards.
3. Stable and reliable performance Good chemical stability, resistant to weak acid and weak alkali, suitable for most water-based liquid working environments, not easy to age and deform.
4. Greatly reduce equipment failure rate Effectively protect oxygen concentrator molecular sieves, vacuum pumps, negative pressure suction devices and other expensive core parts, reducing maintenance cost and equipment downtime.

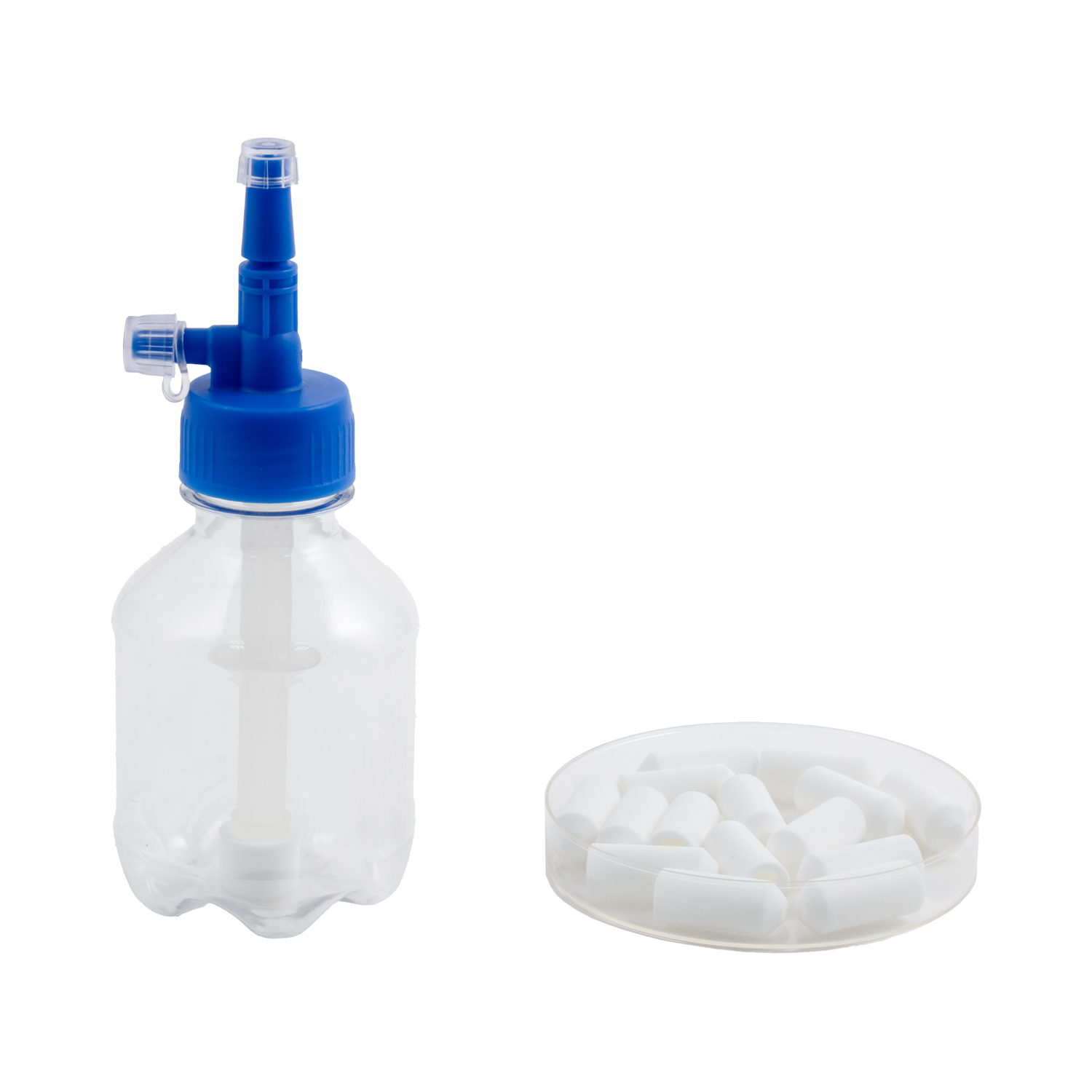

Oxygen Concentrator Humidifier System Prevent humidifier water from flowing back into the host when the oxygen machine is tilted or overturned, avoiding molecular sieve water ingress and failure.
Medical Negative Pressure Suction System Used for vent protection of medical waste liquid bags and suction canisters. When the waste liquid is full, the filter automatically closes to prevent liquid from being sucked into the negative pressure pump.
Laboratory Waste Liquid Container Prevent liquid overflow and gas backflow in laboratory waste bottles to ensure experimental safety and avoid instrument pollution.
Industrial Fluid Equipment Suitable for vent pressure balance of storage tanks, environmental protection equipment and small fluid devices to prevent liquid leakage and backflow.
We support full customization of self-sealing filters, including different pore sizes, diameters, thicknesses and shapes (disc, cylindrical, plug-type). One-way sealing, two-way sealing, disposable sealing and reversible sealing types are optional. All products support OEM & ODM, with stable batch supply and complete certification.
The water-activated self-sealing filter is an irreplaceable safety protection component in medical equipment and fluid handling systems. With its unique automatic shut-off function, safe material and stable performance, it effectively avoids various equipment failures caused by liquid backflow. If you need high-quality sintered self-sealing filters for medical and industrial equipment, welcome to contact us for professional technical support and customized solutions.
