Solid Phase Extraction Column Sieve Plate: Core Support for Accurate and Efficient SPE Experiments
In Solid Phase Extraction (SPE) experiments, people often focus on the selection of adsorbents and the optimization of elution conditions, but easily overlook a seemingly small yet crucial core component — the solid phase extraction column sieve plate. As the "invisible guardian" of the SPE column, the sieve plate undertakes the key responsibilities of fixing fillers, controlling flow rate, and filtering impurities. It directly determines the repeatability, recovery rate, and accuracy of experimental results, serving as an important bridge connecting sample pretreatment and chromatographic analysis, and even a core detail that distinguishes high-end experiments from conventional ones.

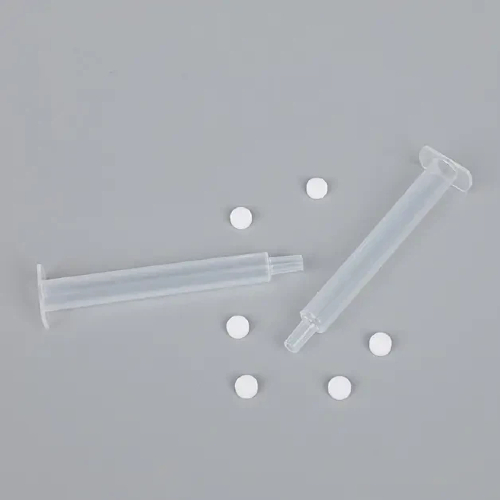

The solid phase extraction column sieve plate, also known as the SPE sieve plate, is a porous thin sheet embedded at the upper and lower ends of the solid phase extraction column. It is mainly made of inert materials such as high-purity polyethylene (PE), polypropylene (PP), and sintered polytetrafluoroethylene (PTFE) through precision sintering or injection molding, with good chemical stability and mechanical strength. Although it seems simple, it carries three irreplaceable core functions, which are the basic guarantee for the smooth conduct of SPE experiments.
Fixing Adsorbent Fillers: It firmly fixes the adsorbents (such as C18, PEP polymers, etc.) in the SPE column within the column bed, preventing the fillers from loosening and leaking during sample loading and elution. It avoids column bed voids and eddy currents caused by filler migration, ensures full contact between the sample and the adsorbent, and guarantees the stability of the extraction effect.
Precisely Controlling Flow Rate: Through optimized pore size distribution and porosity, it achieves uniform penetration and stable flow rate of liquid samples. It not only prevents insufficient extraction caused by too fast flow rate, but also avoids affecting experimental efficiency due to too slow flow rate. High-quality sieve plates have extremely strong flow rate consistency, which can ensure the repeatability of multi-tube parallel experiments and avoid abnormal situations such as "perforation".
Filtering Impurities and Protecting the System: It intercepts suspended particles, flocculents and other impurities in the sample, preventing them from clogging the adsorbent column bed or entering subsequent chromatographic instruments. It not only protects expensive chromatographic columns and detectors, but also reduces the interference of impurities on detection results and improves the accuracy of experimental data.
Not all sieve plates can meet the strict requirements of high-end experiments. Inferior sieve plates are prone to problems such as uneven pore size, flow rate fluctuation, poor solvent compatibility, and particle shedding, which directly lead to experimental failure or data deviation. Our solid phase extraction column sieve plates strictly control every step from raw material selection to production process, with four core advantages, adapting to the high-standard experimental needs of various industries.
Selected high-quality inert materials such as ultra-high molecular weight polyethylene (UHMW-PE), medical-grade polypropylene (PP), and POREX® Virtek™ PTFE. Only high-purity raw materials with less than 10% are used for production, with a water absorption rate of less than 0.01%. It is free of impurities, precipitates, and extractables, with extremely low extractables and particle shedding, avoiding secondary pollution of samples. It is especially suitable for high-sensitivity analysis scenarios, such as drug metabolism detection and trace environmental pollutant analysis.
Adopting precision mold processing and high-temperature sintering technology, it strictly controls the diameter, thickness, and pore size accuracy of the sieve plate, ensuring that the sieve plate perfectly fits the inner diameter of the SPE column tube, with tight assembly without loosening or liquid leakage. The pore size distribution is uniform (multiple specifications such as 5μm, 10μm, 20μm, 50μm are available), the porosity is stable, and the flow rate consistency is excellent, with extremely low batch-to-batch relative standard deviation (RSD), effectively solving the industry pain point of inconsistent flow rates in multi-tube parallel experiments. Taking a 9.0mm diameter sieve plate with 40% porosity as an example, the diameter error is strictly controlled within 0.2mm to ensure stable porosity and avoid abnormal flow rate.
It has excellent chemical compatibility, can withstand various commonly used SPE solvents such as methanol, acetonitrile, acetone, strong acids, and strong alkalis, does not react with samples, and does not adsorb target analytes. It is suitable for various types of SPE experiments such as reversed-phase, normal-phase, and ion exchange. At the same time, it provides two types of sieve plates: hydrophobic and hydrophilic. The hydrophobic type is suitable for organic solvent systems and gas treatment, while the hydrophilic type is specially surface-modified, which can be quickly wetted by aqueous solutions without generating bubbles, adapting to aqueous solution samples, biological fluids and other scenarios, such as desalination of peptides in serum and plasma.
With a rigid structure design, it has high mechanical strength, can withstand high-pressure packing and high-speed centrifugation, is not easy to deform or break, and is suitable for automated solid phase extraction workstations and high-throughput experimental scenarios. The 1.2mm ultra-thin sieve plate can be used to separate different filler layers in multi-layer SPE columns, flexibly meeting complex experimental needs; the PTFE material sieve plate, combined with glass column tubes, can be used for special scenarios such as plasticizer detection, with extremely strong adaptability.
The application scenarios of solid phase extraction column sieve plates are highly bound to SPE technology. With excellent performance, they are widely used in pharmaceutical, environmental, food safety, clinical research, forensic medicine, biotechnology and other fields, becoming an essential component for various sample pretreatment experiments.
Pharmaceutical Field: Drug impurity detection, drug metabolite extraction, and API purification. It is compatible with various SPE columns such as SOLA and HyperSep, meeting the strict regulatory requirements of pharmaceutical QC.
Environmental Field: Extraction and purification of trace pollutants (such as heavy metals, polycyclic aromatic hydrocarbons) in water and soil, helping to improve the accuracy of environmental monitoring.
Food Safety Field: Pretreatment for the detection of pesticide residues, veterinary residues, and mycotoxins in food, effectively removing sample matrix interference and improving detection sensitivity.
Clinical and Biological Field: Extraction and desalination of drugs, peptides, and proteins in biological fluids such as serum, plasma, and urine; DNA/RNA extraction (free of DNase/RNase and PCR inhibitors); support for affinity chromatography column fillers, etc.
Other Fields: Forensic sample detection, solid-phase synthesis (such as peptide solid-phase synthesis), ion chromatography pretreatment, etc., compatible with high-throughput equipment such as 48, 96, 384, and 1536 well plates.
Choosing the right SPE sieve plate is mainly to match experimental needs, SPE column specifications, and sample characteristics, avoiding affecting experimental results due to improper selection. The following four selection points help you quickly select the right product:
Selection by Material: For conventional experiments, PE/PP materials are preferred (moderate cost and wide compatibility); for strong corrosive solvents, high-temperature experiments, or plasticizer detection, PTFE materials are selected; for biological samples and aqueous solution systems, hydrophilic modified sieve plates are selected; for organic solvent systems, hydrophobic sieve plates are selected.
Selection by Pore Size: The pore size needs to match the adsorbent particle size. Generally, a sieve plate with a pore size slightly smaller than the adsorbent particle size is selected (such as 40-60μm adsorbent with 20μm pore size sieve plate); 20μm or 50μm pore size can be selected for DNA extraction; sieve plates with narrow pore size distribution are preferred for high-precision analysis.
Selection by Specification: Select the sieve plate of corresponding size according to the SPE column capacity (1mL, 3mL, 6mL, etc.) and column tube diameter to ensure tight fit; for multi-layer filler SPE columns, select 1.2mm ultra-thin sieve plates; for high-throughput experiments, select special sieve plates compatible with 96-well plates.
Selection by Experimental Scenario: For automated experiments, sieve plates with high mechanical strength and good batch consistency are required; for high-sensitivity analysis, sieve plates with high purity and no precipitates are required; for biological sample extraction, sieve plates free of DNase/RNase and non-adsorbent to proteins are required.
In a highly homogenized market, we have always focused on experimental needs and specialized in the R&D and production of SPE sieve plates. With three core competencies, we have become the preferred partner of numerous laboratories and enterprises around the world.
Strict Quality Control System: Each batch of products undergoes strict quality testing, including pore size distribution, flow rate consistency, chemical compatibility, particle shedding and other indicators, ensuring stable product performance and minimal batch-to-batch differences. A complete test report can be provided.
Customized Services: We support customizing sieve plates of different materials, pore sizes, thicknesses, and sizes according to customer needs, adapting to special specifications of SPE columns and experimental scenarios. Whether it is ultra-thin sieve plates, customized pore sizes, or special material modification, we can respond quickly.
Full-Scenario Adaptation: The products cover various materials such as PE, PP, and PTFE, with full specifications of hydrophobic and hydrophilic types. They are compatible with various mainstream SPE columns such as HyperSep and SOLA, as well as high-throughput equipment, meeting the needs of different industries and experiments in one stop.
Although the solid phase extraction column sieve plate is small, it is the core guarantee for the accuracy and efficiency of SPE experiments. Inferior sieve plates may lead to repeated experimental failures, data deviations, and even damage expensive instruments, while high-quality sieve plates can help you avoid risks, improve experimental efficiency, and make each set of data highly reliable.
Whether you are a laboratory researcher, an enterprise quality inspector, or an operator of a high-throughput experimental platform, our solid phase extraction column sieve plates can provide you with stable and reliable support, helping you achieve efficient breakthroughs in the sample pretreatment link and lay a solid foundation for subsequent chromatographic analysis.
Contact us now to get exclusive selection advice and unlock a new experience of accurate and efficient SPE experiments!
