Views: 0 Author: Site Editor Publish Time: 2026-09-29 Origin: Site
Selecting the right flow configuration for an ultrafiltration system is rarely a standard preference. Instead, it is a calculation driven by feed water characteristics and lifecycle operational expenditures (OPEX). Every plant faces unique raw water challenges demanding highly specific filtration responses.

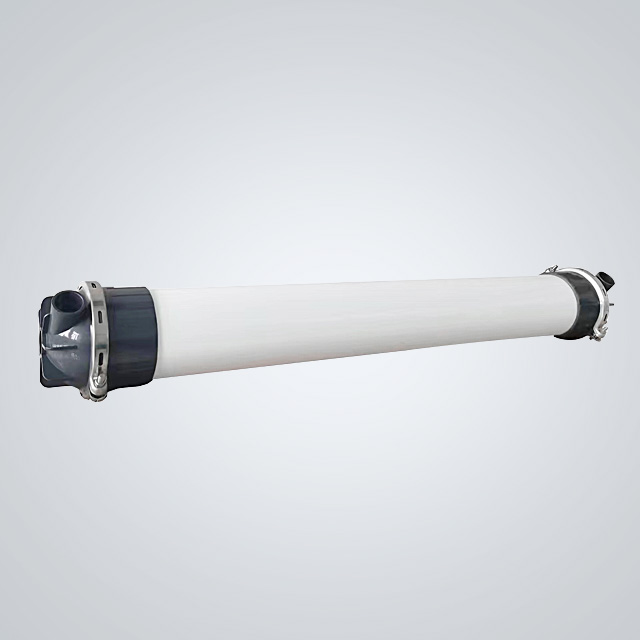

Both primary configurations utilize a hollow fiber UF membrane module to achieve fine filtration. However, the chosen direction of flow fundamentally alters pretreatment requirements, fouling risks, and cleaning mechanics. What succeeds in treating municipal drinking water might completely fail when applied to heavy industrial wastewater.
For plant engineers and procurement managers evaluating system upgrades or greenfield designs, acquiring this technical clarity is essential. Understanding the specific limitations and strengths of each flow path remains critical. You need this precise knowledge to avoid premature module failure, prevent catastrophic blinding, and minimize excessive maintenance overhead.
Feed Water dictates flow: Inside-out flow is highly sensitive to total suspended solids (TSS) and requires strict pretreatment, whereas outside-in flow tolerates higher turbidity and variable feed quality.
Cleaning efficiency varies: Inside-out modules benefit from highly uniform hydrodynamic backwashing, while outside-in systems rely heavily on air scouring to manage cake layer buildup.
OPEX trade-offs: The choice directly impacts energy consumption, chemical cleaning frequency, and the physical footprint of the filtration skid.
Risk profiles differ: Inside-out configurations face catastrophic fiber plugging risks if pretreatment fails; outside-in configurations face sludge accumulation in the module center if aeration is poorly distributed.
Understanding the mechanical differences between these two operational modes is the first step toward proper system design. The fundamental distinction lies in how feed water interacts with the physical polymer boundaries of the membrane. You must evaluate fluid dynamics, pressure resistance, and surface area utilization to make an informed engineering choice.
In this configuration, pumps force feed water directly into the lumen, which is the hollow center of the fiber. As the fluid travels down this narrow channel, pressure pushes the permeate through the microscopic pores of the membrane wall to the outside. The clean water then collects in the outer casing for distribution.
This flow path requires highly precise hydrodynamic control. Because the lumen represents a restricted physical space, operators must carefully monitor feed pressure to prevent structural damage. However, this confinement offers a distinct advantage. Flow distribution remains exceptionally uniform across the entire module. Every fiber receives a relatively equal share of the hydraulic load, ensuring consistent filtration rates and predictable fouling patterns.
Conversely, the outside-in approach flips the interaction. Feed water surrounds the exterior of the fibers. Systems draw permeate into the internal lumen using either negative pressure (a vacuum pump drawing from the inside) or positive feed pressure (pressurizing the outer shell). The fibers essentially sit suspended in a bath of feed water.
This method offers a significantly larger active surface area for initial contact. Raw water impacts the entire outer circumference of the fiber bundle rather than forcing its way into a tiny bore. Consequently, operators gain flexibility when managing variable flow rates or sudden spikes in biological loading. When evaluating an outside-in UF membrane module, engineers often appreciate this forgiving nature during unpredictable raw water events.
The structural integrity of any given polymer reacts differently depending on the direction of applied force. You must account for these material limits. Inside-out flow subjects the fiber to internal bursting pressure. The polymer expands outward. Manufacturers must design the fiber walls to withstand this outward stress without rupturing under high crossflow velocities.
Outside-in flow subjects the fiber to external collapsing pressure. The force pushes inward, attempting to flatten the hollow lumen. Membrane manufacturers often utilize specific supporting structures or thicker wall dimensions to prevent the fiber from crushing itself. Recognizing these pressure constraints helps you match the physical module design to your operational pumping limits.
Raw water chemistry and physical debris loading should dictate your final module selection. Attempting to force an incompatible technology into a high-fouling environment will guarantee operational failure. You must measure total suspended solids (TSS), turbidity, and organic content before drawing any design conclusions.
The most rigid barrier between the two technologies involves physical solids handling. Inside-out limitations are strict. Engineers typically restrict these systems to feed water containing a TSS of less than 50 mg/L. Larger particles or sudden debris spikes will instantly plug the fiber lumens. Once a particle wedges into the bore, it permanently blinds that specific fiber, reducing the overall capacity of the system.
Outside-in tolerance operates on a much broader spectrum. These systems routinely handle TSS concentrations exceeding 100 mg/L. In specialized submerged Membrane Bioreactor (MBR) applications, they process mixed liquor suspended solids reaching thousands of milligrams per liter. The debris simply accumulates on the fiber exterior. This outer cake layer is far more forgiving and easier to physically dislodge than a lumen blockage.
Because of these varying tolerances, pretreatment philosophies differ drastically. If you deploy an inside-out UF membrane module, you must invest heavily in stringent pre-filtration. Operators usually install automatic backwashing strainers or disc filters rated between 100 and 300 microns. This aggressive screening protects the delicate inner bores from catastrophic plugging.
Outside-in setups generally require less aggressive upstream protection. Engineers often specify pre-filtration screens rated at 500 microns or larger. This reduced need for ultra-fine screening lowers upfront capital expenditures (CAPEX) and removes a complex maintenance item from the daily operational checklist.
Industry standards evolved naturally around these physical realities. Inside-out configurations remain the gold standard for municipal drinking water treatment and RO (Reverse Osmosis) pretreatment. These sources—such as deep wells or highly settled reservoir water—are typically low in organics and manageable in turbidity.
Outside-in configurations dominate industrial wastewater treatment, agricultural runoff processing, and surface water applications carrying high biological loads. When rivers experience seasonal flooding, turbidity spikes dramatically. The external flow path absorbs these chaotic events without suffering permanent mechanical blinding.
Operational Parameter | Inside-Out Flow | Outside-In Flow |
|---|---|---|
Maximum Recommended TSS | < 50 mg/L | > 100 mg/L (Varies by application) |
Pre-filtration Requirement | Strict (100–300 micron) | Moderate (500+ micron) |
Fouling Location | Internal lumen bore | External fiber surface |
Primary Application Target | Municipal water, RO pretreatment | Wastewater, heavy surface water |
Long-term success depends entirely on how effectively operators can clean the membranes. As foulants accumulate, transmembrane pressure (TMP) rises, driving up energy costs and reducing output. The two flow directions utilize vastly different strategies for restoring permeability.
A standard UF membrane module requires periodic flow reversal to dislodge trapped particles. An inside-out design provides remarkably superior backwash hydrodynamics. The reverse flow originates from the clean outer shell and pushes contaminants inward into a highly confined space. This creates a high-velocity sweep down the lumen, forcefully expelling debris out of the module.
Outside-in modules sometimes struggle to match this uniform cleaning energy. When backwashing an external fiber bundle, the reverse flow pushes debris outward into an open, unrestricted space. If the module packing density is too high, the cleaning fluid can channel through paths of least resistance. This uneven distribution occasionally leaves stubborn foulants clinging to the outer fiber walls.
To compensate for lower backwash velocities, outside-in systems rely heavily on air scouring. Blowers inject air into the bottom of the module. As the bubbles rise through the housing, they violently agitate the suspended fibers. The fibers physically rub against one another, effectively shaking loose the external cake layer. This mechanical scouring remains vital for maintaining flux in high-solids environments.
Inside-out modules generally cannot utilize air scouring effectively. Attempting to force air down a microscopic bore creates extreme friction and minimal physical agitation. Consequently, these systems rely purely on liquid velocity and frequent Chemical Enhanced Backwashes (CEB) to dissolve stubborn organic layers.
Your energy budget will heavily influence the decision. Inside-out configurations demand significant pump energy to maintain high-velocity crossflow and overcome the internal friction of the narrow lumens. Feed pumps must work continuously to drive the hydraulic sweeping action.
Outside-in configurations consume energy differently. While feed pumping requirements are often lower (especially in vacuum-driven submerged setups), the aeration blowers draw massive amounts of power. Air scouring must run frequently, sometimes continuously, to prevent sludge compaction. You must audit your local electricity rates and weigh the cost of heavy pumping against the cost of heavy aeration.
Every filtration technology carries inherent failure risks. Recognizing how these specific modules degrade over time allows maintenance teams to implement proactive safety measures. You cannot treat both systems with identical operational protocols.
The primary vulnerability of internal flow is catastrophic fiber plugging. This risk materializes whenever upstream pre-screens fail or bypass valves leak. If an operator accidentally introduces large debris into the feed stream, the fibers will instantly clog. Once a lumen is blocked, backwashing cannot clear it. That specific fiber is permanently lost, instantly reducing the overall hydraulic capacity of the module. This forces operators to replace the entire unit prematurely.
External flow systems face their own distinct mechanical threats. High concentrations of sticky biological solids can clump between the densely packed fibers. If air scouring distribution is poor, this material compacts into dense "sludging" zones at the center of the bundle. Furthermore, the constant mechanical stress of aggressive air scouring causes fatigue. Over several years, the violent shaking can lead to premature fiber breakage, particularly near the potting resin where the fibers anchor into the module header.
System designers must also decide how to manage fluid movement across the membrane surface. Inside-out modules frequently toggle between dead-end and crossflow modes. In clean water, dead-end mode (where 100% of feed converts to permeate) saves immense energy. If turbidity rises, operators switch to crossflow mode, recirculating a portion of the feed to sweep the lumens clean.
Outside-in modules operate smoothly in dead-end mode for long durations due to their large surface area, relying on periodic air blasts to manage the accumulating cake. This operational flexibility allows plants to adapt quickly to seasonal algae blooms or sudden rain events without completely shutting down the production line.
Transitioning from theoretical knowledge to procurement requires a structured evaluation process. Plant engineers should not rely on vendor preference alone. We recommend applying a strict, three-tiered criteria framework to finalize your technology selection.
Establish the 95th percentile worst-case feed water profile. Do not design your system around average daily conditions. You must analyze peak turbidity events, seasonal biological spikes, and maximum TSS. If these numbers are historically high or entirely unpredictable, default immediately to outside-in technology to ensure operational safety.
Audit your plant's chemical and energy budget constraints. Evaluate the availability of maintenance staff to manage chemical cleaning protocols. If minimizing continuous aeration blower costs remains a top facility priority, and your feed water is reliably pristine, lean heavily toward inside-out modules.
Evaluate physical footprint and retrofit constraints. Space matters in existing facility upgrades. Outside-in modules, particularly those in submerged open-tank variations, can occasionally offer higher packing densities. This allows designers to squeeze immense treatment capacity into a remarkably small existing footprint.
Theoretical modeling only provides a baseline. Proceeding to empirical pilot testing is a non-negotiable step before finalizing large-scale procurement. You must secure a small pilot skid from the manufacturer and run it on-site using your actual feed water. A standard 30-day pilot trial exposes unexpected organic foulants, reveals the true frequency required for chemical cleanings, and proves the viability of your chosen pretreatment screens. Real-world data mitigates expensive long-term engineering mistakes.
Choosing the correct flow direction for an ultrafiltration system determines the long-term viability of the plant. Neither flow direction proves universally superior across all applications. True credibility in system design comes from matching the internal or external flow path strictly to the empirical data of your feed water. Plant engineers must prioritize raw water characterization and operational cleaning capabilities over module brand names or theoretical marketing claims.
If you face pristine water requiring minimal energy, leverage the precision of internal flow. If you face chaotic, high-solids wastewater, rely on the rugged forgiveness of external filtration. Secure your site data, run the necessary pilot tests, and let the chemistry dictate your engineering procurement.
A: It is rarely possible without significant mechanical overhauls. Changing the flow direction requires extensive repiping, entirely different feed pump sizing, and complete reprogramming of the control logic. The pressure requirements, backwash sequencing, and aeration needs differ so fundamentally that swapping modules often equates to building a brand-new filtration skid.
A: Chemical usage depends highly on organic loading, but outside-in configurations generally require more frequent Chemical Enhanced Backwashes (CEB) in high-fouling wastewater applications. Because they process heavily contaminated streams, operators must use sodium hypochlorite or citric acid regularly to strip sticky organic films from the external fiber surfaces.
A: While hollow fiber remains the dominant industry standard for this flow path due to its incredibly high surface area density, alternative geometries do exist. Tubular membranes and flat sheet configurations operate on similar external-contact principles and are deployed in specific extreme-TSS niches, such as heavy industrial slurries where hollow fibers would instantly sludge together.
